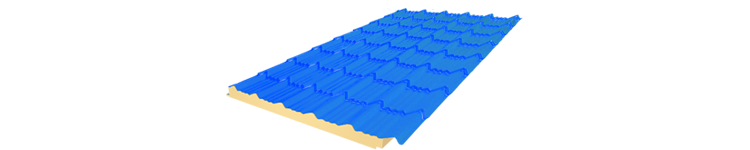

Ardavaz design panel, Iris model, double-sided sheet
Sizes
| (x) (mm) | 30 |
| effective width (mm) | 1055 |
| ineffective width (mm) | 1190 |
| maximum length | In desired lengths up to 12 meters |
Insulation layer material
| density | 40 Kg/m3 |
| Heat transfer coefficient | 0.0159 |
| foam type | PUR (B2) , PIR |
Material of top and bottom layers
| top and bottom sheet | Pre-painted galvanized / Pre-painted aluzinc / Pre-painted aluminum / Steel |
| thickenss | 0/5 - 0/4 - 0/3 (mm) |
| foaming type | cold rolling |

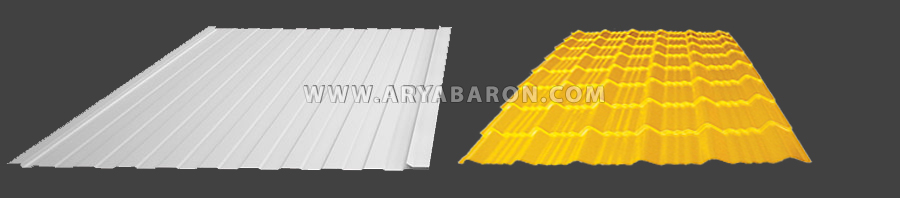

Color and design of the top and the bottom sheet
